Beskrivelse

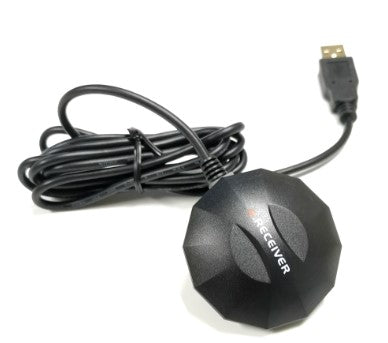

GPS-modul for Victron-produkter som Cerbo GX. Mottakeren har innebygd antenne med magnetfot og kobles til for eksempel Cerbo GX via USB. Etter kort tid vil Cerbo bruke GPS-dataene fra enheten til å vise installasjonens posisjon, noe som kan brukes til geofencing i VRM og lignende.
- Bruker 5V DC via USB
- Trekker ca. 0,33 watt i drift.
- 1,5m kabel
- Støtter foruten Cerbo også Windows XP/7/8/10
- Acquisition: -148dBm
- Tracking: -167dBm
- SBAS (WAAS, EGNOS, MSAS) support
- Higher update rate option (default 1Hz)
- RTCM 2.3 support
- A-GPS support
- OMA SUPL/3GPP TS25.171 (GSM/UMTS) compliant
- Backup battery support for faster position fix
- LED for position fix indication
- Windows location sensor support
- 56-Channels
- NMEA-0183 protocol
- Størrelse: 52x52x19mm
- Støttede protokoller: GPRMC,GPVTG,GPGGA,GPGSA,GPGSV,GPGLL
Spesifikasjoner
| Produktnr | 51445 |
|---|---|
| Varenr | 51445 |
| Størrelse | 52x52x19 mm |
| Vekt | 130 g |
